Display your product manufacturing information (PMI)

Posted: November 2, 2020

Your model contains Product Manufacturing Information (PMI)? Then, Virtofy will be able to display your PMI with just one click!

What is PMI?

With Product Manufacturing Information you can embed information about a design’s components and manufacturing - elements like geometric dimensioning and tolerancing (GD&T), text annotations, surface finish and material specifications.

How does it work?

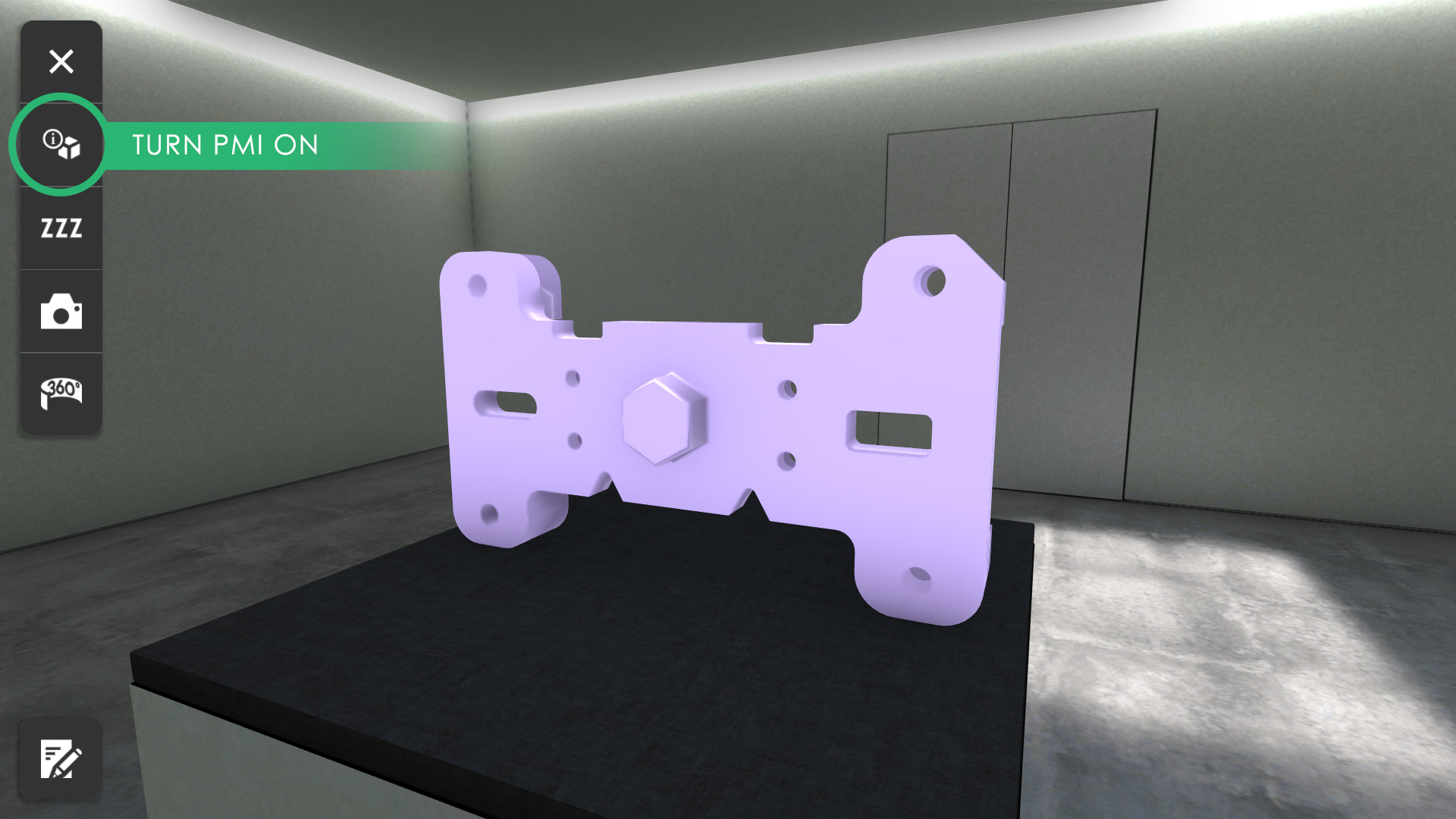

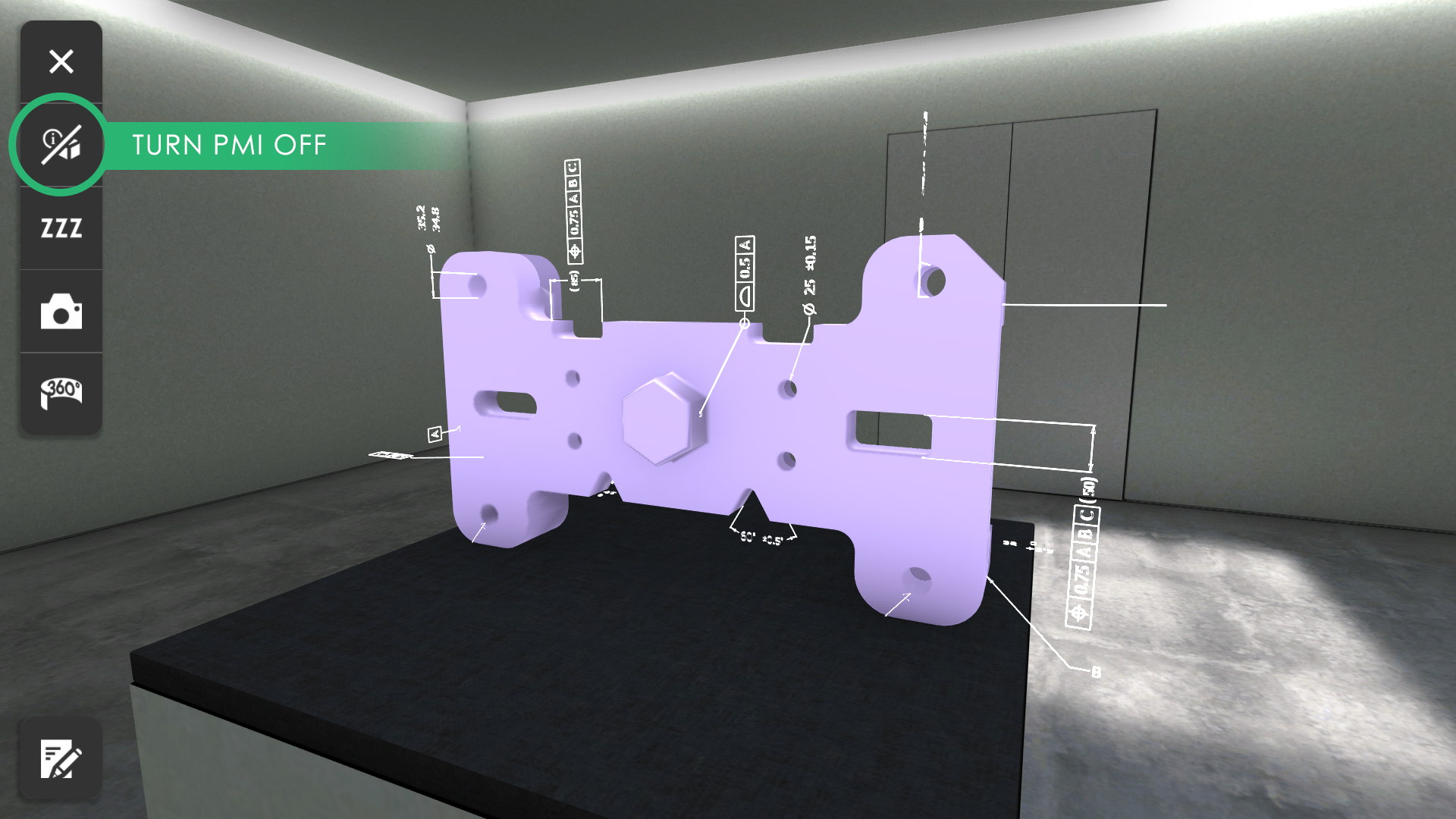

When you import your CAD data, Virtofy will detect automatically, if your model contains Product Manufacturing Information. Your tour will then contain automatically the option to turn the PMI on and off at any time, simply by clicking the PMI icon.

Screenshots taken from dev. version, looks may vary from final design

If you have any questions about this topic or how Virtofy can help you, ask us
